Testing car wiring is an important step in automotive electrical diagnosis. A circuit tester helps determine whether a wire has power, ground, or an open circuit. This is useful for diagnosing lights, fuses, switches, relays, trailer wiring, and aftermarket accessories.
Why Test Car Wiring?
Vehicle electrical problems often come from:
- Broken wires
- Loose connectors
- Blown fuses
- Poor ground connections
- Corrosion
- Damaged terminals
- Incorrect accessory installation
A circuit tester helps locate the problem before replacing parts unnecessarily.
Step 1: Understand the Circuit
Before testing, identify whether the wire should carry constant power, switched power, signal power, or ground. If available, check the vehicle wiring diagram.

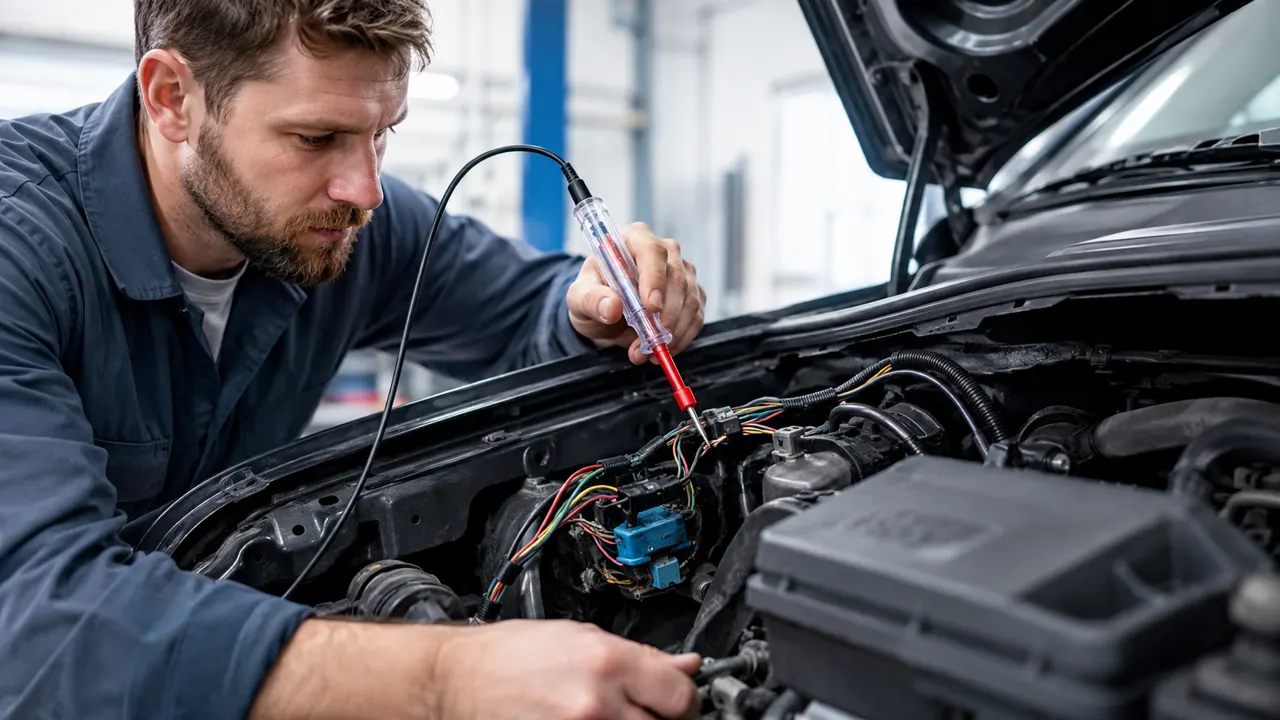

Step 2: Connect the Tester Ground
Attach the circuit tester ground clip to the battery negative terminal or a clean chassis ground.
Step 3: Test for Power
Touch the probe tip to the wire terminal or connector. If the tester shows voltage, the wire has power.
For most automotive wiring, a normal 12V circuit should read close to battery voltage.
Step 4: Test Switched Power
Some wires only receive power when the ignition switch is turned on. Turn the key to ACC or ON position, then test again.
This is common when installing dash cams, radios, USB chargers, or lighting accessories.
Step 5: Test Ground
To test a ground wire, connect the tester clip to battery positive and probe the suspected ground point. If the tester activates, the ground is connected.
Step 6: Check for Voltage Drop or Weak Contact
A wire may show power but still fail under load due to corrosion, loose terminals, or poor contact. Inspect connectors carefully if the reading is unstable.
Important Safety Note
Avoid probing airbag wires, ECU harnesses, or high-risk electronic systems without proper training.
Conclusion
Testing car wiring with a circuit tester is a fast and practical way to diagnose automotive electrical problems. It helps repair shops, installers, and distributors provide safer and more reliable electrical service.
